Durable Portable Jumper Cables MINI DIN 4.3-10 Male To DIN Male Connector 1 Meter

Brand Name : ZD

Model Number : ZD-JC-1M-MND/DM

Certification : RoHS

Place of Origin : China

MOQ : 1

Price : chat with me

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 5-8 work days

Packaging Details : carton

Insulator resistance : ≥5GΩ

VSWR : ≤1.15 (DC-3GHz)

PIM(IM3) : ≤-160dBc@2x43dBm

Mating cycles : ≥500 cycles

Coupling nut retention : 500N

Characteristics Impedance : 50Ω±1

Contact Now

rf MINI DIN 4.3-10 Male to DIN-Male Connector for 1 meter 1/2 SuperFlexible jumper cable
1. RF coaxial connector
1.1 Connector Materials and Plating
Inner conductor:
Bronze, plated with silver,plating thickness ≥0.003mm
Outer conductor:
Brass, plated with ternary alloy,plating thickness≥0.003mm
Fastener: Brass:
Insulation
dielectric:
PTFE
1.2 Connector Electrical Spec
Characteristics impedance:
50Ω
Frequency range:
DC-6GHz
VSWR:
≤1.15 (DC-3GHz)
Insulator resistance:
≥5GΩ
Center conductor resistance:
≤1.0mΩ; Outer conductor resistance: ≤0.2mΩ
Test voltage (at sea level):
≥2500 V rms
PIM(IM3):
≤-160dBc@2x43dBm
1.3 Connector Mechanical Feature
Mating cycles:
≥500 cycles
Coupling nut retention:
500N
Recommended torque:
5 N.m
Termination cable retention:
≥300N
2. RF coaxial cable: 1/2" Super Flexible RF Cable
2.1 Materials
Inner conductor:
aluminum wire covered with copper (Φ3.55mm±0.04)
Insulation dielectric:
polyethylene foamed PE (Φ9.2mm±0.20)
Outer conductor:
Helically corrugated copper (Φ12.0mm±0.2)
Cable jacket:
PE or fire retardant PE (Φ13.60mm±0.20)
2.2 Feature
Characteristics impedance:
50Ω
Capacitance:
82 PF/m
Propagation velocity:
83%
Min. single bending radius:
50mm
Tensile strength:
800N
Insulation resistance:
≥5GΩ
Shielding attenuation:
≥120dB
VSWR:
≤1.15 (0.01-3GHz)

3. Jumper cable

3.1 Electrical feature
Frequency Band:
700-2700MHz

Characteristics Impedance:
50Ω±1
Operating Voltage:
1500V
VSWR:
≤1.1 (DC-3GHz), ≤1.15 (3-6GHz)
Insulation voltage:
≥2500V
Insulation resistance:
≥5GΩ (500V DC)
PIM(IM3):
≤-160dBc@2x20W, manufacturing 100% QC test 900MHz, 1800MHz.

3.2 Insertion Loss:

Frequency
1 meter
2 meter
3 meter
5 meter
800-960MHz
≤0.13dB
≤0.24dB
≤0.34dB
≤0.52dB
1710-1880MHz
≤0.18dB
≤0.34dB
≤0.50dB
≤0.78dB
1920-2200MHz
≤0.24dB
≤0.40dB
≤0.56dB
≤0.90dB
2500-2690MHz
≤0.28dB
≤0.48dB
≤0.68dB
≤1.0dB
5800-5900MHz
≤0.30dB
≤0.62dB
≤0.94dB
≤1.58dB
3.3 Environment feature
Operating temperature range:
-45℃ to +85℃
Storage temperature range:
-70℃ to +85℃
Thermal shock:
IEC 60068-2-14 Test Na
Corrosion resistance:
IEC 60068-2-11 Test Ka
Vibration:
IEC 60068-2-6 Test Fc
Shock:
IEC 60068-2-27 Test Ea
Moisture resistance:
IEC 60068-2-3 Test Ca
Degree of protection (mated pair):
IEC 60529, IP67

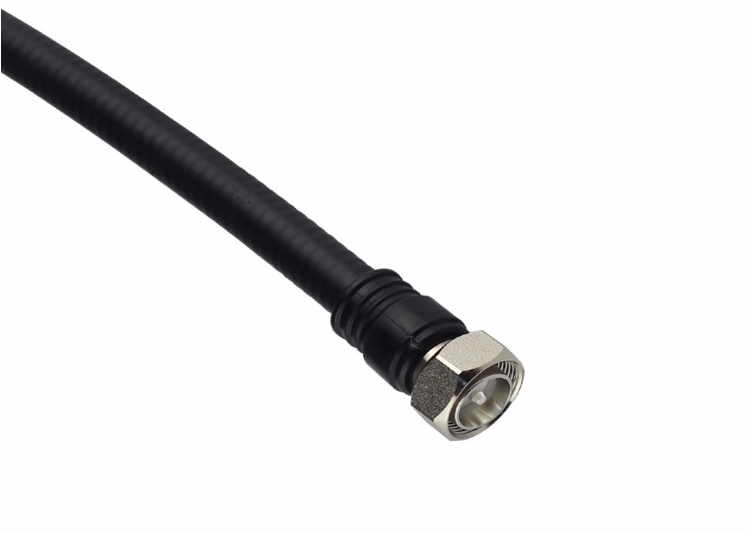

Durable Portable Jumper Cables MINI DIN 4.3-10 Male To DIN Male Connector 1 MeterDurable Portable Jumper Cables MINI DIN 4.3-10 Male To DIN Male Connector 1 Meter
